Radiant floor will be heated with geothermal refrigerant that will transmit the heat from refrigerant to water. The heated water will travel about 300 feet before looping back the cooled off liquid.
MVG
Radiant floor will be heated with geothermal refrigerant that will transmit the heat from refrigerant to water. The heated water will travel about 300 feet before looping back the cooled off liquid.
MVG

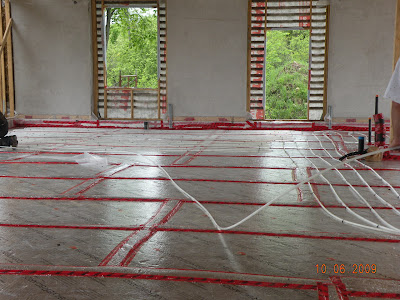

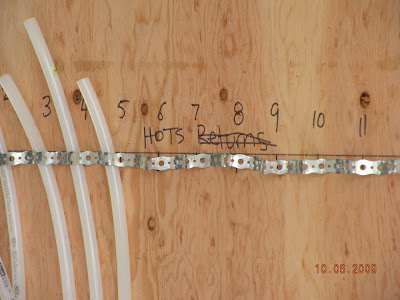

The "swtichboard". Valves placed on the hots side will allow occupants to control what part of the floor they want heated. If occupants are not using one part of the space, they can turn it off.
MVG
The "swtichboard". Valves placed on the hots side will allow occupants to control what part of the floor they want heated. If occupants are not using one part of the space, they can turn it off.
MVG

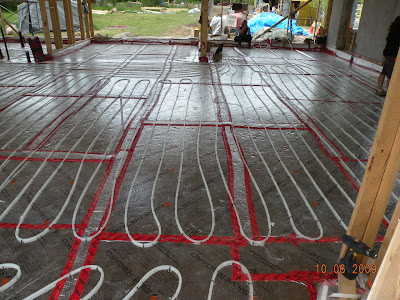

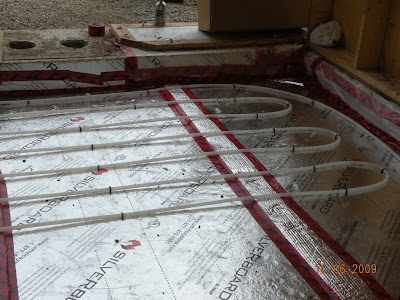

Piping is laid in U forms across the floor.
MVG
Piping is laid in U forms across the floor.
MVG

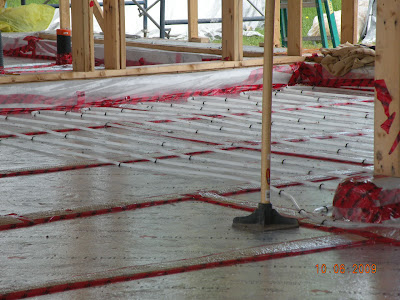

Close up of tamper and stapler.
MVG
Close up of tamper and stapler.
MVG

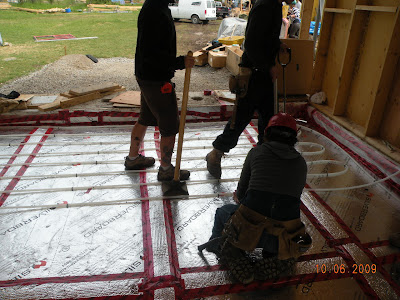

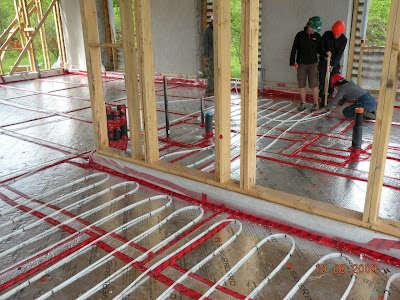

Kaily, Kate and Brad lay out the piping, using the width of a tamper as their guide while stapling every 3 feet or so.
MVG
Kaily, Kate and Brad lay out the piping, using the width of a tamper as their guide while stapling every 3 feet or so.
MVG

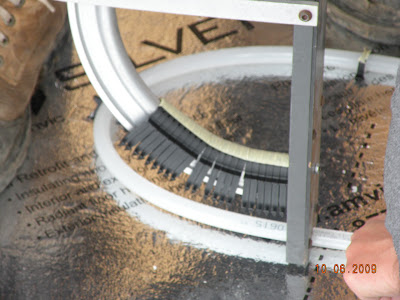

This is a "pogo stapler". It staples the pipe into the silverboard.
MVG
This is a "pogo stapler". It staples the pipe into the silverboard.
MVG

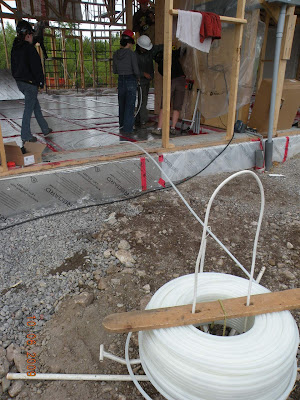

This de-coiler makes it easy to relay the radiant piping along the floor.
MVG
This de-coiler makes it easy to relay the radiant piping along the floor.
